VACUO-B vacuum lifting devices, which are dedicated to handling heavy loads from 80 to 320 kg such as wooden panels

Bolstered by this extensive experience and our knowhow on the vacuum handling market, COVAL is now offering you our full range of VACUO-B vacuum lifting devices, which are dedicated to handling heavy loads from 80 to 320 kg such as wooden panels ( chipboard, plywood.. ) and porous panels. The VACUO-B line of vacuum lifting devices is COVAL's standard product addressing such needs as horizontal handling and 90° swivelling of porous loads by one single operator. They are easy to use, benefit from outstanding reliability and all-round ruggedness, and are available in electric version. The VACUO-B vacuum lifting devices are equipped with a blower allowing to generate a high air flow and ensuring the grip of porous materials. Besides, in case of power failure, the handling of the loads is maintained thanks to the blower's flywheel.

The VACUO-B vacuum lifting devices are specifically designed for the following applications:
■ Palletizing and depalletizing
■ Feeding machinery
■ Unloading conveyors

Advantages:
■ Fast and easy to implement
■ Humanizes the most strenuous physical labour
■ Productivity gains.
■ Loads can be handled by a single operator.
■ Will not cause any deterioration of handled loads.
■ Improves working conditions
■ Easy to use
■ Quick return on investment
■ Complies with EC directives

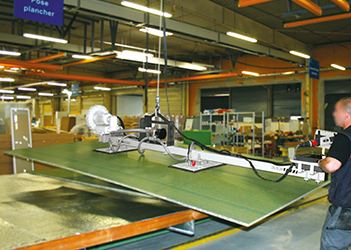

Ergonomics

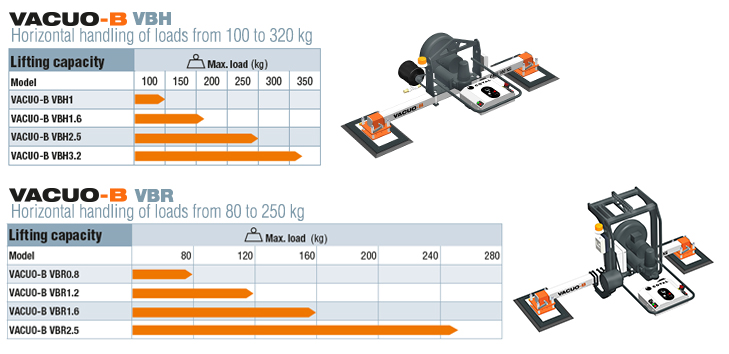

Using VACUO-B vacuum lifting devices allows you to improve working conditions by reducing operator's fatigue and accidents for all operations involving horizontal handling of porous panels weighing up to 320kg or 90° swivelling of panels weighing up to 250 kg.

Security

The VACUO-B line includes the following safety features:
■ Flywheel blower allowing in case of power failure to maintain the vacuum in the suction cups , the time that the operator secures the station.
■ Electronic colour display type vacuum switch indicating the vacuum level in suction cups
■ Warning Alarm in case of power cut or drop of vacuum level
■ Power on indicator
■ 2 red "Release" buttons that force the user to use both hands
According to your applications and needs, additional features can be selected from the Option Packs.

COVAL vacuum lifting devices comply with the EU Machinery 2006/42/EC and Low voltage 2014/35/EU directives as well as with European standard EN 13155.

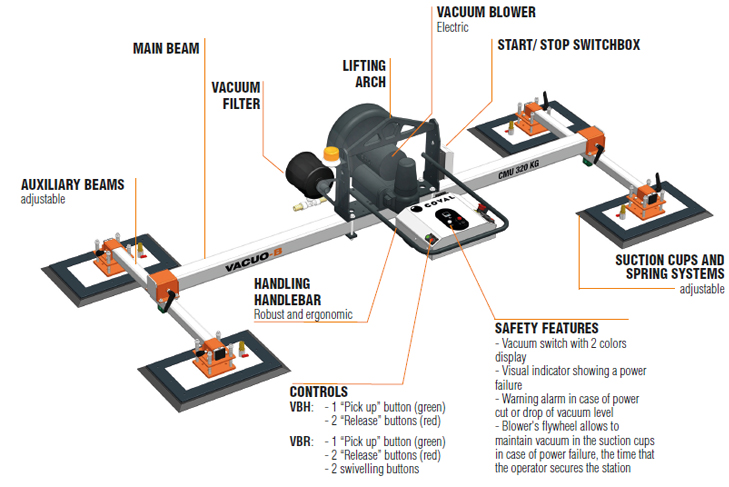

VACUO-B in detail

Power

The VACUO-B vacuum lifting devices are available in electric versions for optimal integration in the handling workstation. The vacuum is generated by a dry rotary vane vacuum pump, flow rate: 150 m3/h.

■ Available voltages:
- Three-phase 230 V (2.35 A - 1.3 KW)
- Three-phase 400 V (1.35 A - 1.3 KW)

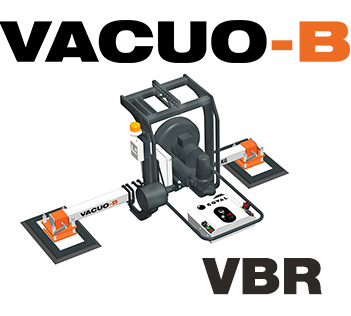

■ VBR version: Swivelling by electric cylinder

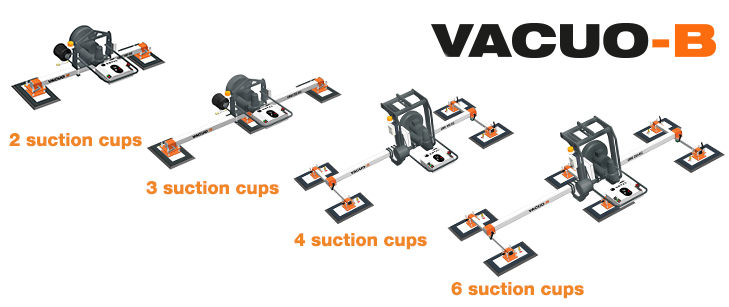

Number of suction cups

The VACUO-B vacuum lifting devices are available in versions equipped with 2, 3, 4 or 6 suction cups in order to adjust the dimensions and thickness of the sheet metal to be handled and ensure an optimal grip without any risk of deforming or damaging the loads.
